Fitment For:

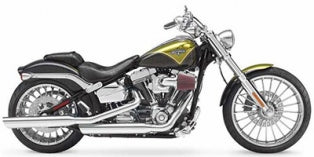

• Harley Davidson Softail CVO Models 2013-2014


Controller is protected by a MAP (minimum advertised price) policy.

This controller is NOT California ON-ROAD approved.
CARB E.O. D-654 controller available by phone order only.

SPECIFIC TECH INFORMATION

Controller comes with O2 harnesses 451 and 452. Your stock O2 connections need to be disconnected and the harnesses installed in between the connections.
YELLOW zone has a TIMEOUT after 5 seconds to allow for a large shot of fuel during acceleration. The range of adjustment is from 20% to 50%. The zone is reset each time after either entering the top end RED zone or dropping back into the cruise GREEN zone.
Factory injector connections DO look different from the MT Pockets Performance controller connectors, but the male and female connections will plug in ok.

Installation of Injector Harness is front and rear specific - Your bike is equipped with Harley's Engine Idle Temperature Management System (EITMS). When engine temperature exceeds 284° F, the EITMS will turn off the rear cylinder fuel injector. Idle speed will be maintained, however the rear cylinder will become an "air pump" which will work to cool the engine. MT Pockets Performance controllers power-up through our channel 1 injector connection. The connector pair with double pinned RED and YELLOW wires is channel 1 and should be connected to the FRONT cylinder
