Fitment For:

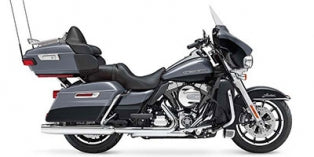

• Harley Davidson Touring / Touring CVO Models 2014-2016


Controller is protected by a MAP (minimum advertised price) policy.

This controller is NOT California ON-ROAD approved.
CARB E.O. D-654 controller available by phone order only.

SPECIFIC TECH INFORMATION

Controller comes with O2 harnesses 451 and 452. Your stock O2 connections need to be disconnected and the harnesses installed in between the connections.

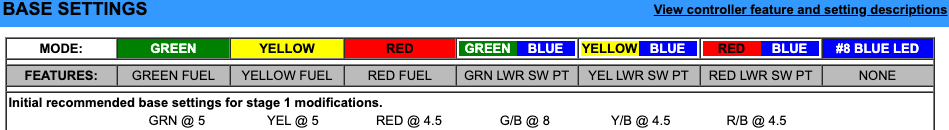

The GREEN zone engages at 1400 rpm with a GREEN/BLUE setting of 8.

Installation of Injector Harness is front and rear specific - Your bike is equipped with Harley's Engine Idle Temperature Management System (EITMS). When engine temperature exceeds 284° F, the EITMS will turn off the rear cylinder fuel injector. Idle speed will be maintained, however the rear cylinder will become an "air pump" which will work to cool the engine. MT Pockets Performance controllers power-up through our channel 1 injector connection. The connector pair with double pinned RED and YELLOW wires is channel 1 and should be connected to the FRONT cylinder.

July 9th, 2014 - HD Recall - Motorcycles with anti-lock brakes built between July 1, 2013, and May 7, 2014, are included in the recall. Harley-Davidson Inc. says the front brake line can get pinched between the fuel tank and the frame. The pinched line could cause front brake fluid pressure to increase, increasing the risk that the front wheel could lock up while riding.
PLEASE BE CAREFUL WHEN INSTALLING CONTROLLER AND REMOVING YOUR FUEL TANK

Twin Cooled High Output Twin Cam 103 V-Twins - Rough Idle Issue - Harley Touring models outfitted with their liquid-cooled engine may experience a rough idle. If your bike is experiencing this condition then please adjust your Green-Blue light setting down to 1 instead of the preset 8. This will allow the GREEN zone to add the fuel at idle and help correct the rough idle. Harley models equipped with this engine are: Tri-Glide, Ultra Limited and the 110cc version CVO Limited.
