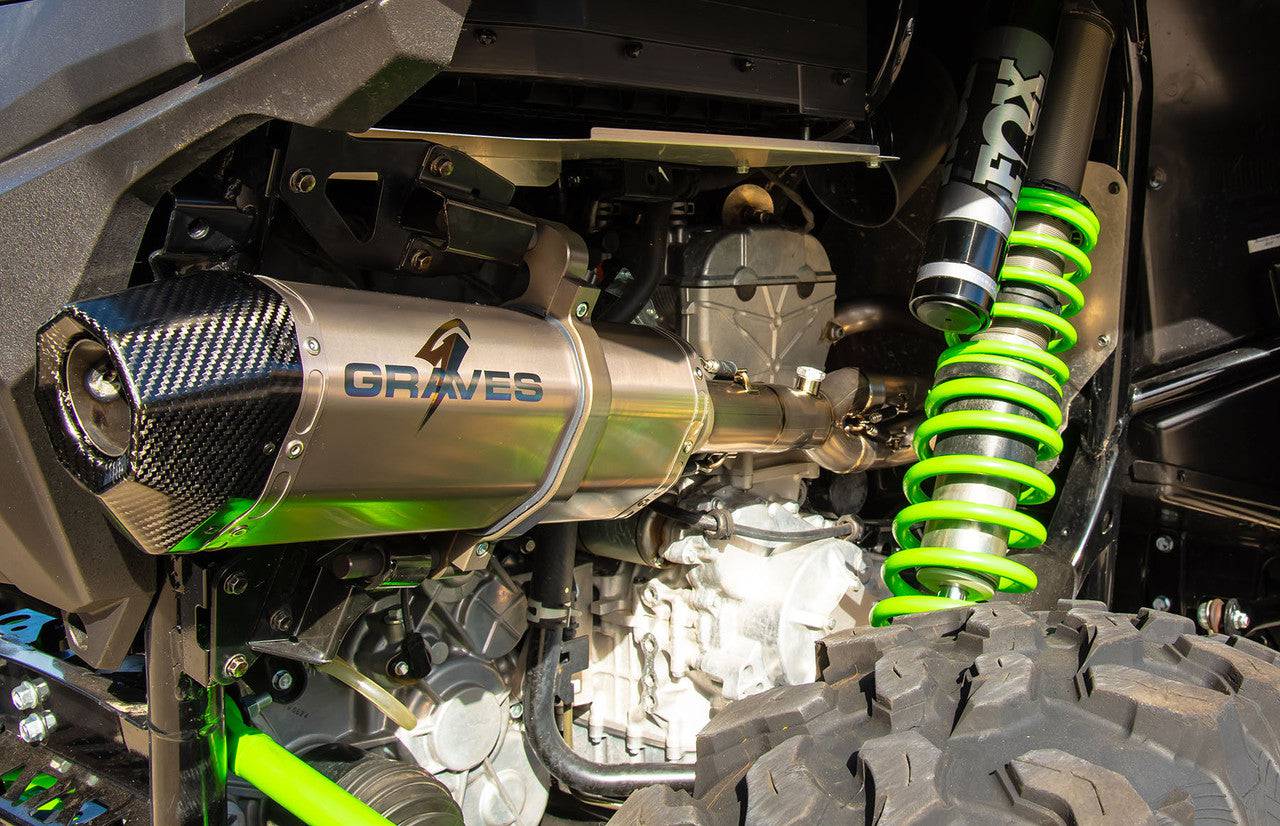

Graves Motorsports Kawasaki Teryx KRX 1000 Titanium Cat Eliminator Exhaust. Graves' precise engineering develops precision products that are designed to outlook, outperform and outlast the competition. Graves Exhaust systems are designed for the elite driver seeking top of the line performance, fit, finish and value. This exhaust system was developed using the same technology that has powered the Graves Racing Team to 30 Professional AMA National Championships including 9 Superbike Championship titles and 3 Side x Side Pro Titles (Pro Stock and Pro Mod UTV).

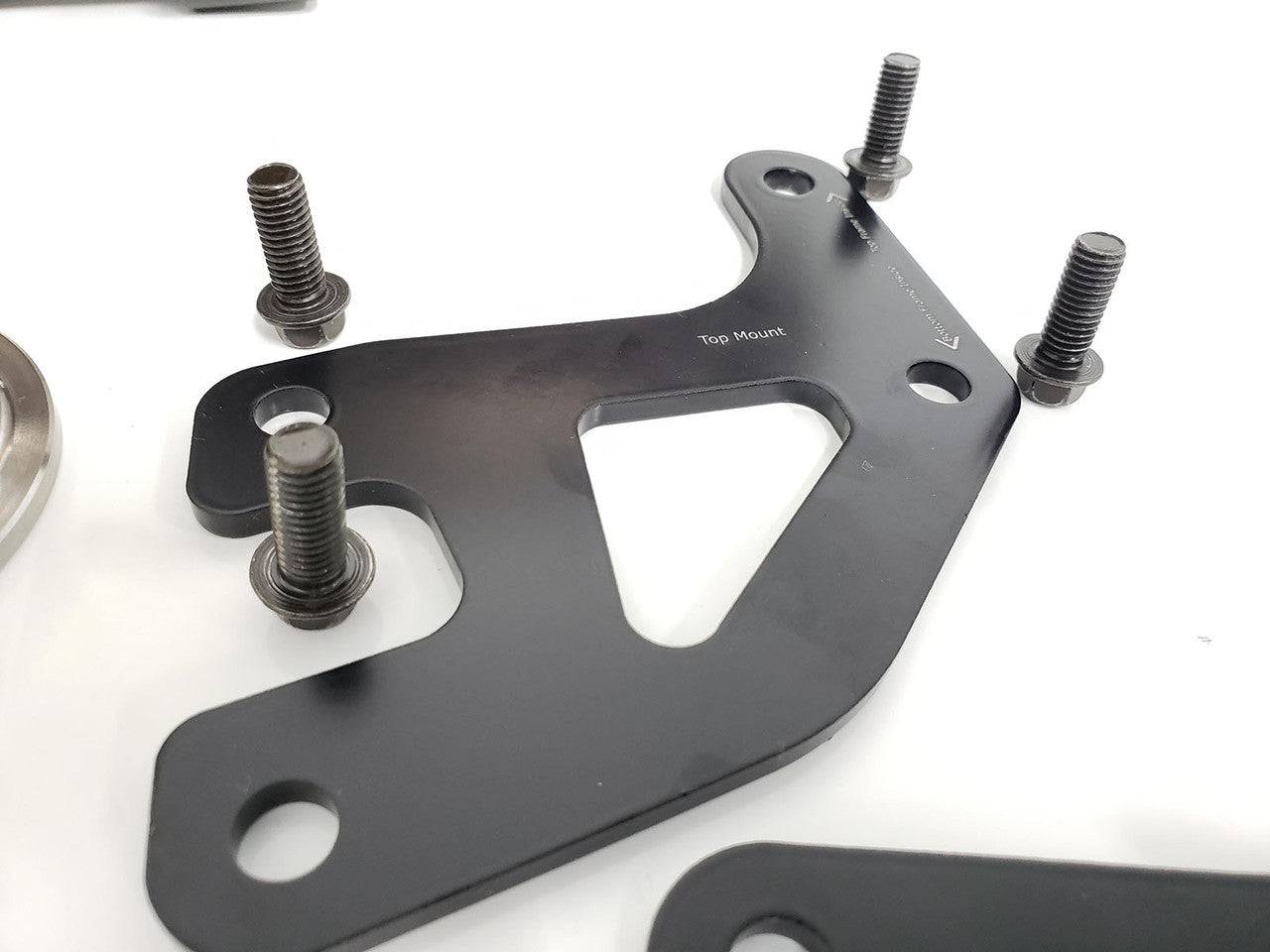

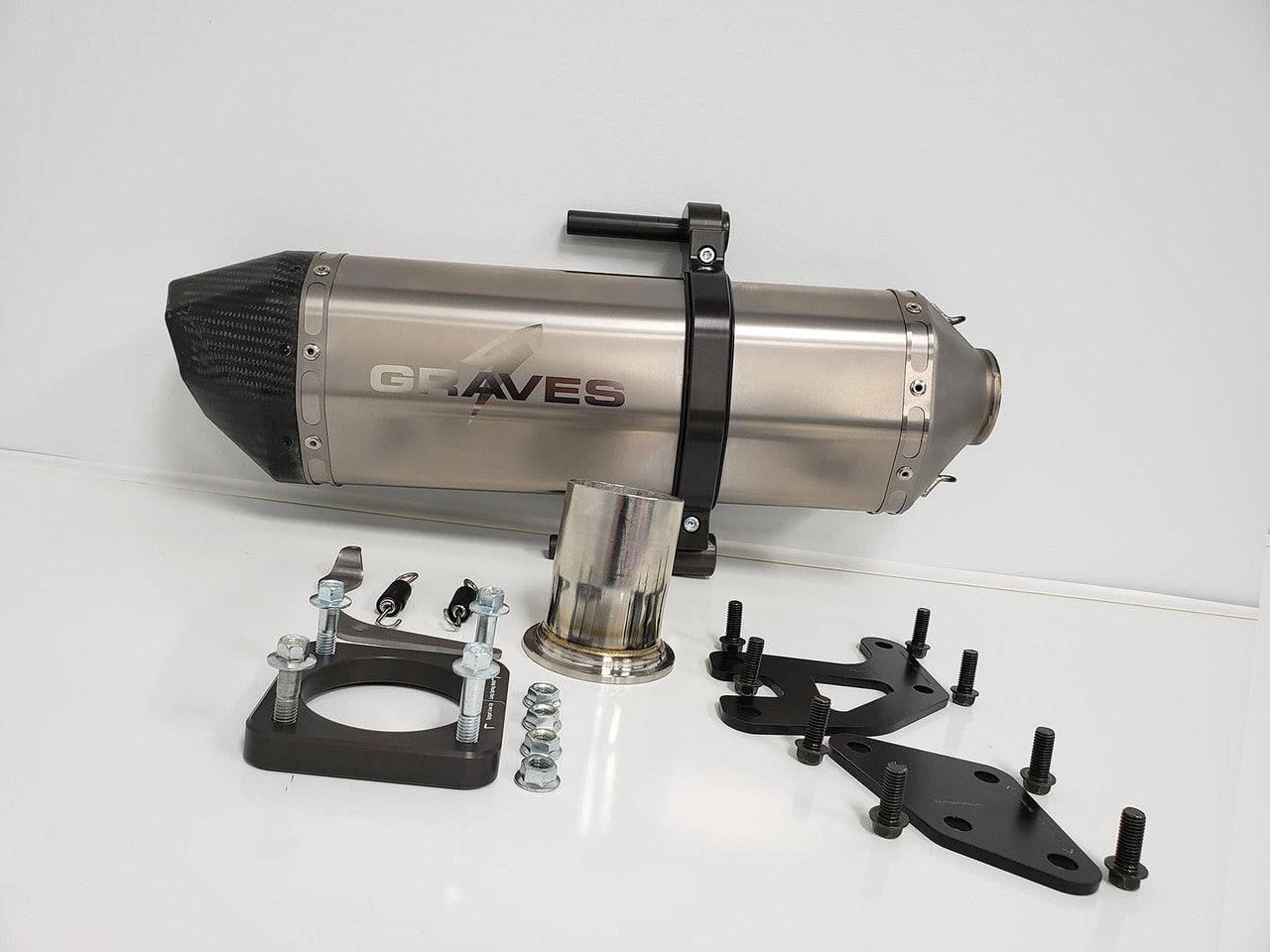

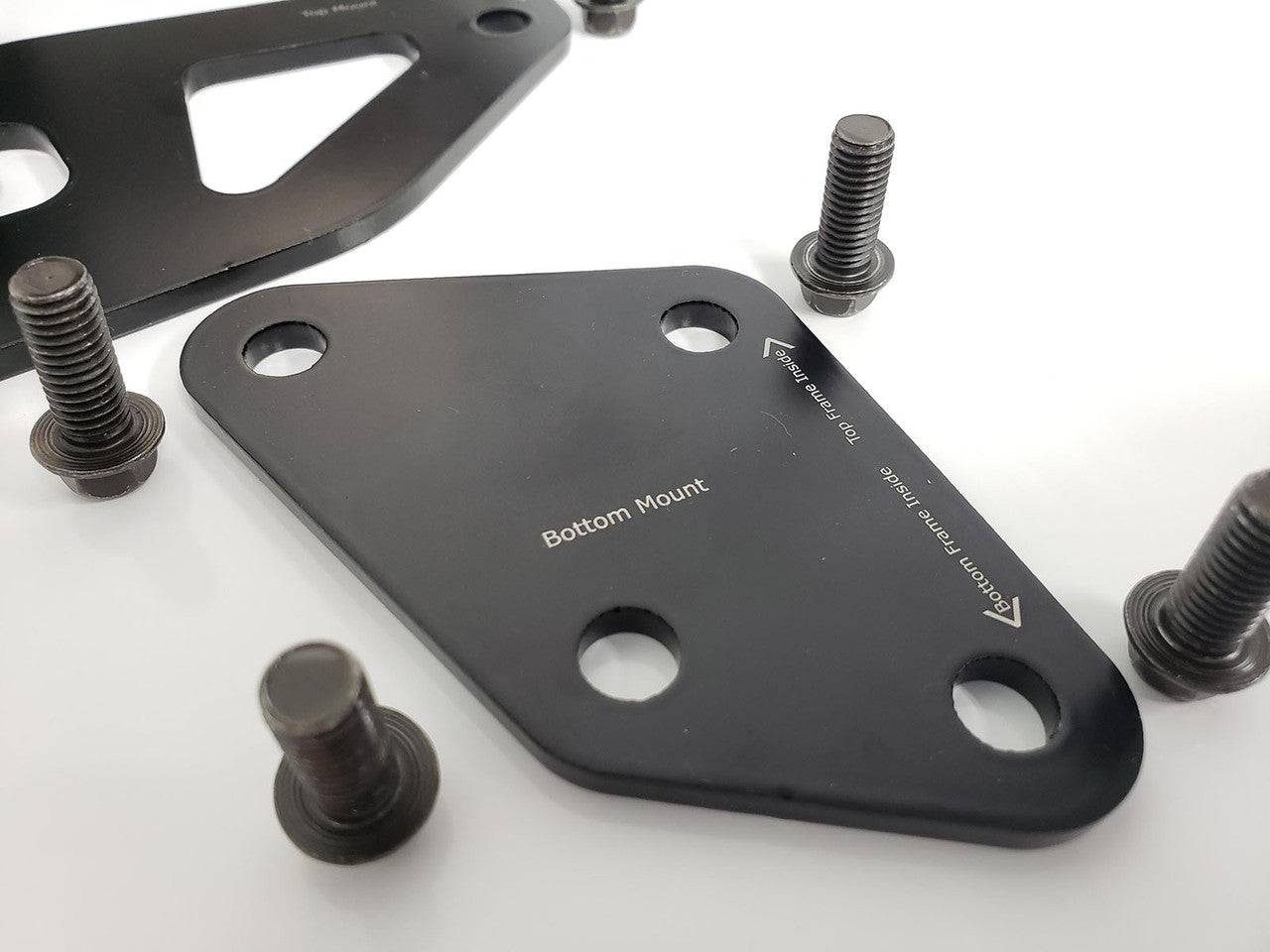

New Silencer Design Featuring: Titanium silencer body with Carbon Fiber end cap. Kit includes a billet machine mounting bracket to insure your exhaust stays in place! This design not only streamlines the looks of your side by side but it saves weight. Suggested tuning options are Flash Tune (FTEcu) kits found in separate listings. FTEcu maps for all Graves systems are available through email only with verified exhaust purchases.



The Goal of Graves when designing this KRX1000 exhaust system was to provide the best performing, highest quality product on the market. We did not compromise in the development of this system. Material diameters, the silencer core size and length are optimized for maximum power output throughout the throttle and RPM range. Forestry approved quiet core / spark arrestor sold separately.

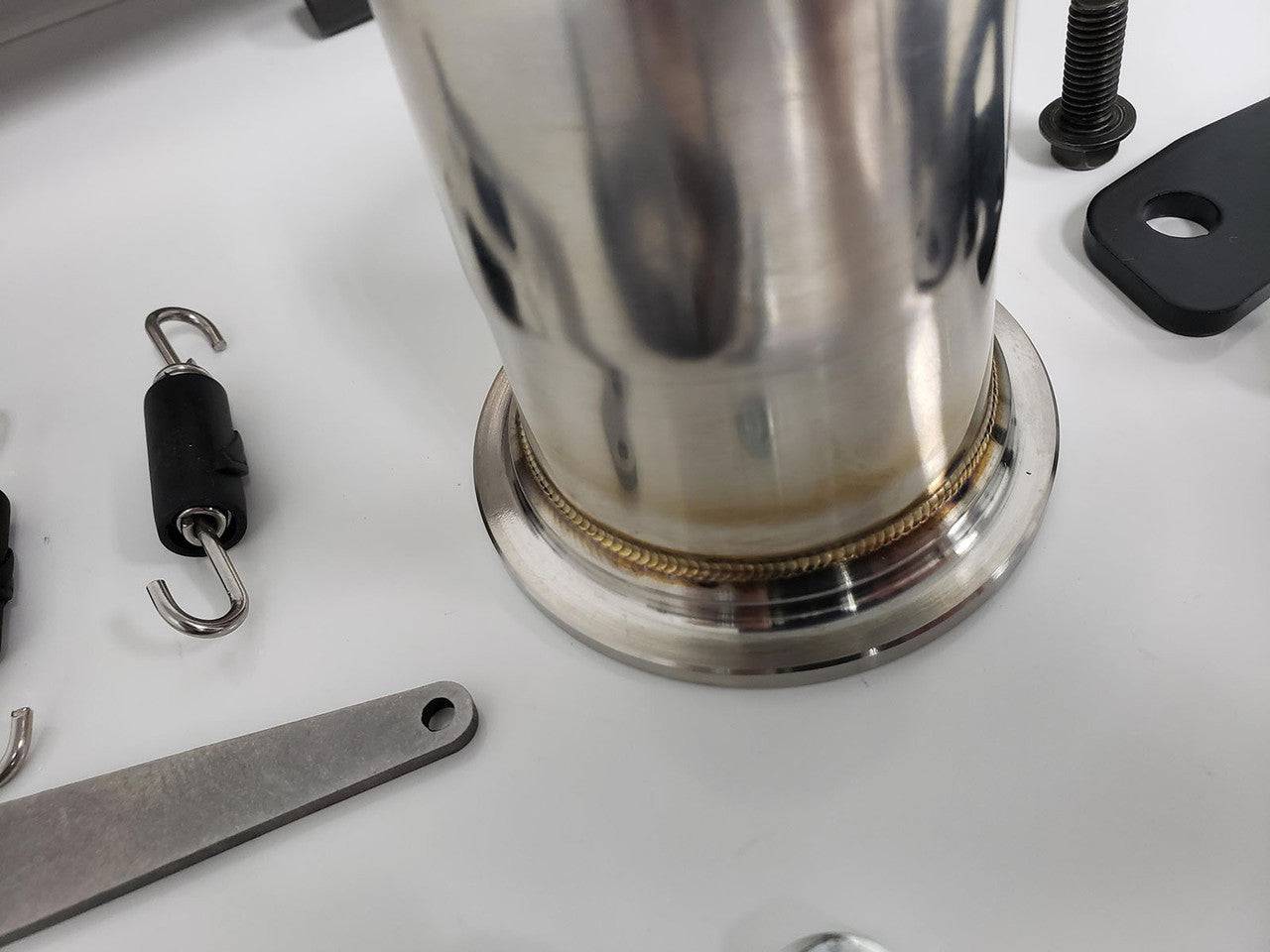

The cat eliminator silencer slips onto the included mounting kit and uses spring tabs as an added mounting feature alongside the aluminum bracket. The silencer is supported with an Aluminum bracket machined 6061 T651 and hard anodized for long life. The silencer sleeve is made of Titanium that attaches to the carbon fiber end cap with stainless aircraft grade rivets and Titanium silencer bands. The inter core tube is made of stainless that slips over the entrance and into the exit cap with a carbon exit beauty cover.

This system performs like it looks and looks like it performs. (11/10ths and maximum effort every time from Graves)- Chuck Graves

• Stock: 81.5 db at Idle / 93 db at 4000 rpm
• Graves System: 91 db at Idle / 104 db at 4000 rpm
• Graves System with Spark Arrestor: 90 db at Idle / 102 db at 4000 rpm
• Stock Muffler: 25.4 lbs. Graves Cat Elim: 7.8 lbs

Fitment:

• Teryx KRX 1000 • 2020-2023
• Teryx KRX 1000 Trail Edition • 2021-2023
• Teryx KRX 1000 Special Edition • 2021-2023
• Teryx KRX 1000 eS 2021, 2023
• Teryx KRX-4 1000 eS 2023
• Teryx KRX-4 1000 eS SE 2023
