EMISSIONS AND NOISE REGULATIONS

NOTE: The California Air Resources Board ("CARB") and/or the Environmental Protection Agency ("EPA") does not permit the use of aftermarket emissions-related part(s) that alter the performance of OEM emissions-related devices other than on racing vehicles on closed courses. Check your local laws and manufacturer’s information.

Rapid Bike RACING add-on module represents the highest level of technology available for reaching top performance, offering the widest range of solutions for demanding professional track riders and street users. Starting from the new standards set by Rapid Bike EVO, RACING module is designed to manage additional and innovative features setting new and unmatchable standards within the competitive arena.

IGNITION MAP using the pick-up signal management for an accurate control of injection and spark advance timing

ENGINE BRAKE managed while decelerating to prevent rear wheel jumping and improve the bike’s stability while bending

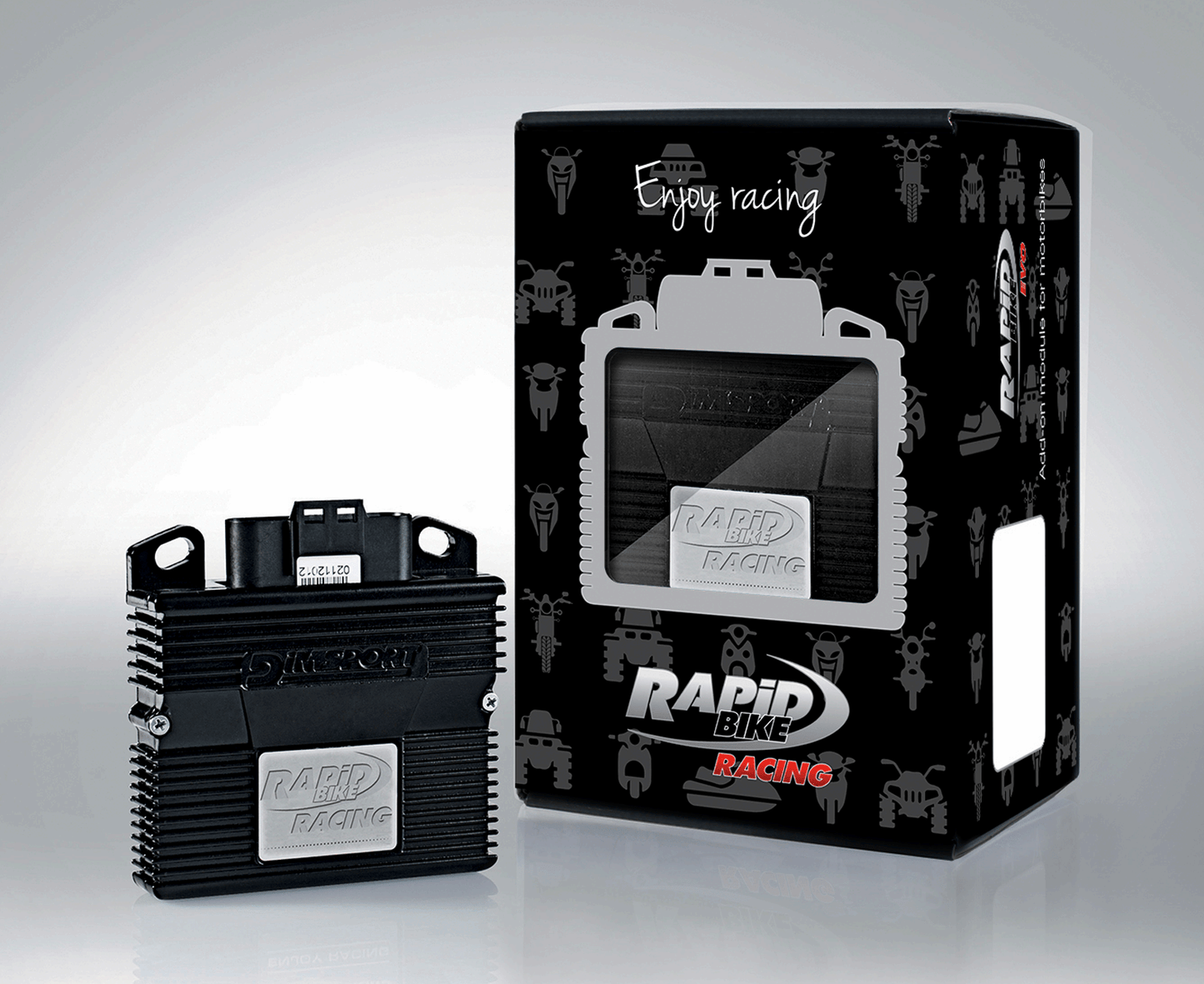

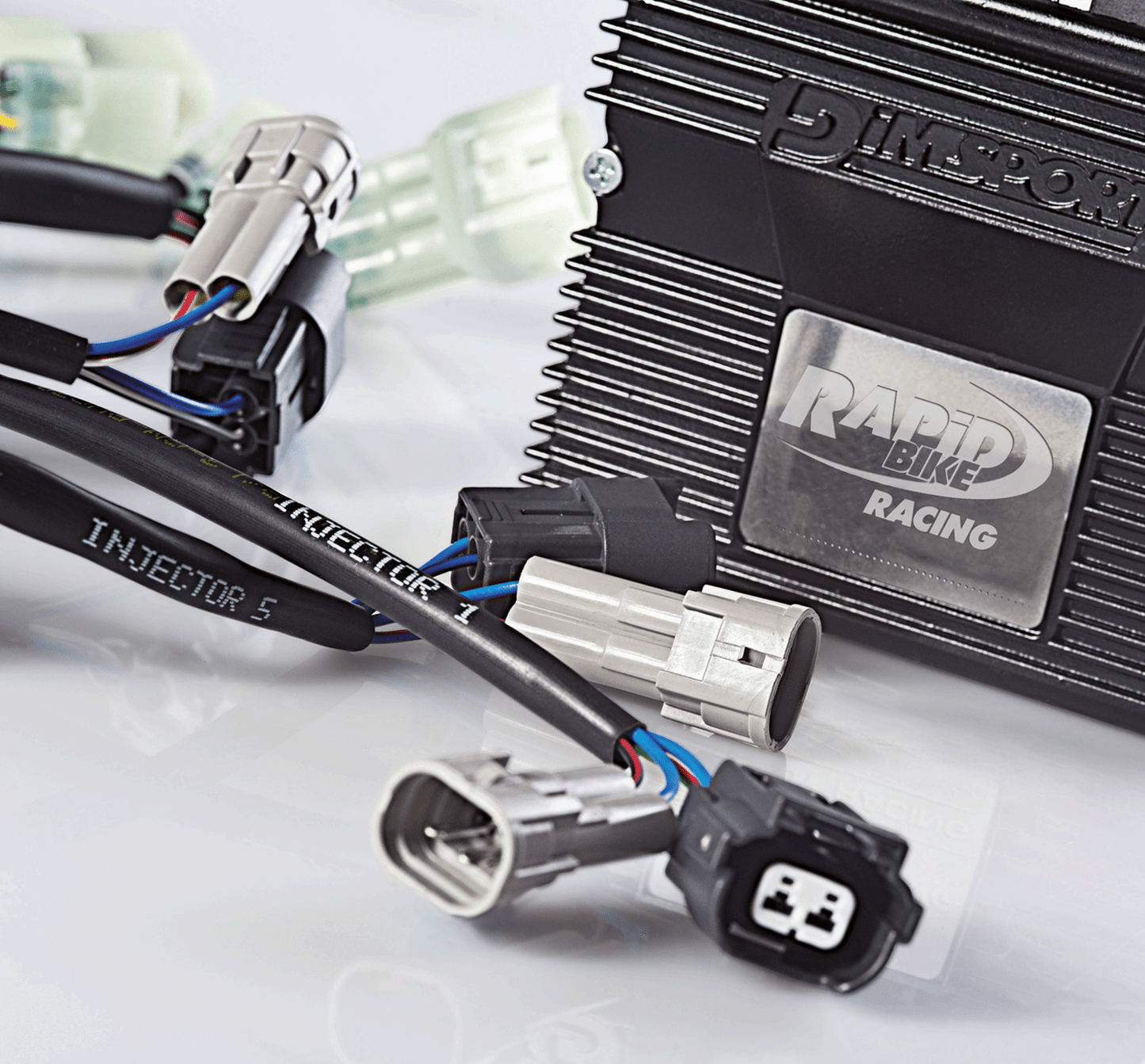

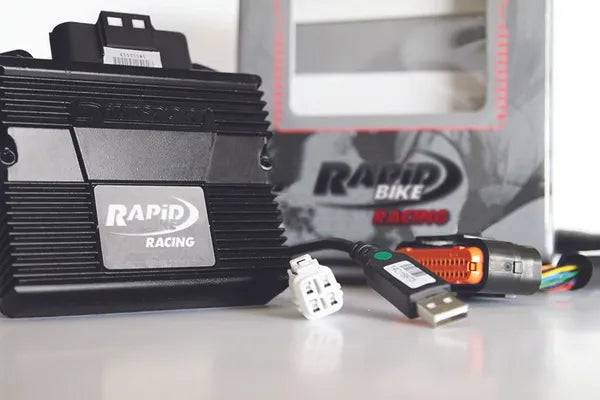

Kit including the Rapid Bike Racing module, USB cable and a model specific wiring harness.

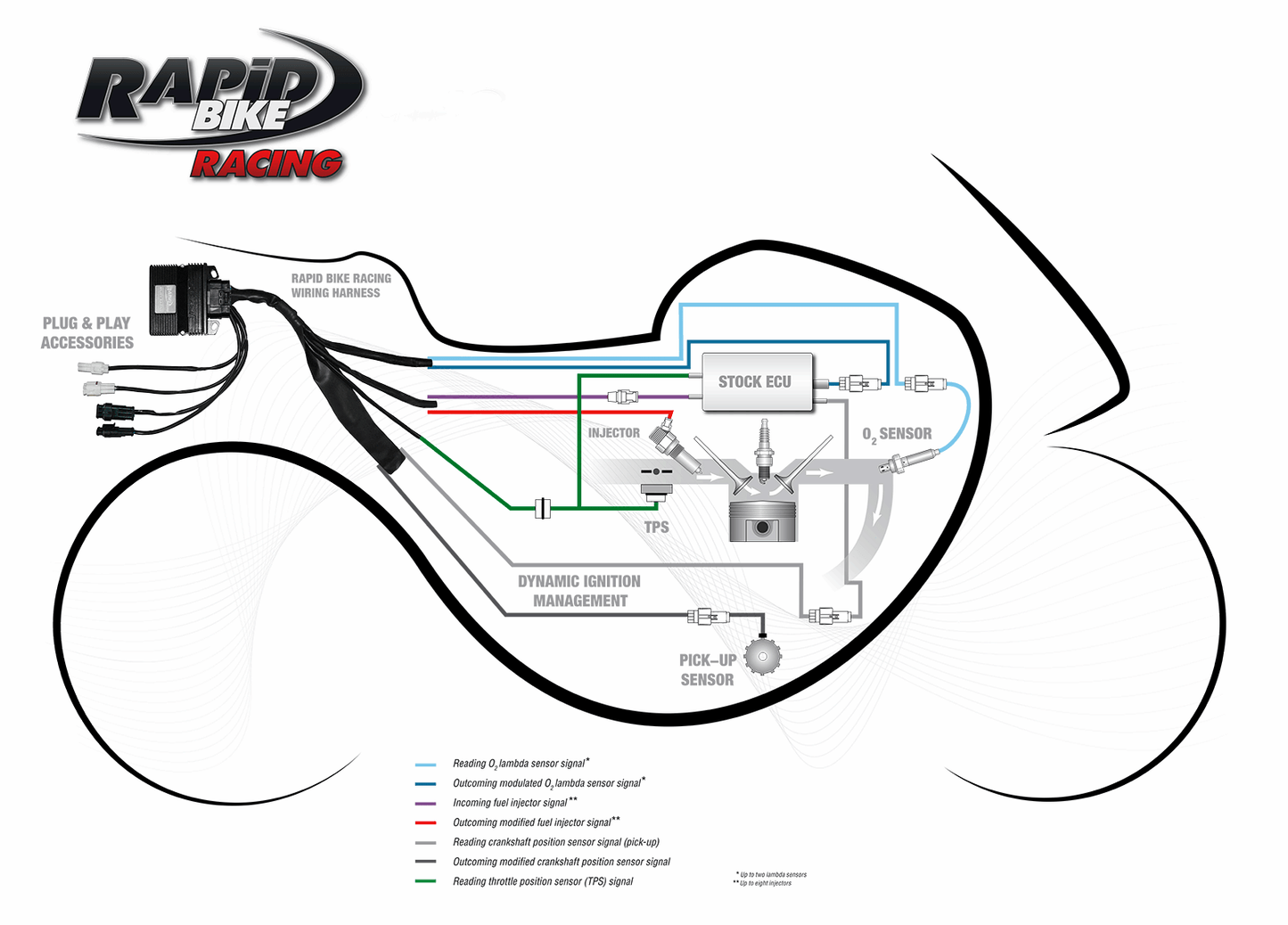

The Racing module manages up to 8 injectors and modulates the signal up to two O2 sensors (up to 2 lambdas). The purpose of the O2 sensor (lambda) modulation is to prevent the stock ECU from recognizing the adjustment applied by the Rapid Bike module to the injection map without any further attempts to re-set the stock parameters matching the criteria fixed by the restrictive exhaust gas emission laws.

When riding the motorcycle, the self-adaptive feature determines the automatic self-correction of the air/fuel ratio maps: this active management is added up to the pre-set parameters. The adjustments set by Rapid Bike Racing  improve the engine efficiency in order to reach the best performance. The self-correction process is set in multipoint technology according to RPM and TPS, for the whole range of the engine working, even when the original RPM limiter is raised (when available).

Modulating the stock O2 sensor (lambda) signal is a technology far more advanced than the so called “O2 sensor eliminator” (or any other similar device used by the competitors) since they send a static/constant signal which is in conflict with the typical behavior of the lambda sensors, therefore causing the main ECU to perceive such a constant signal as a mistake to be corrected. Thanks to Rapid Bike exclusive technology for the modulation of the stock lambda signal the main ECU considers this behavior as standard; therefore it will not try to re-set the stock engine parameters.

The Racing module’ s most important benefit is the so-called Auto-adaptive feature, that is the ability to correct automatically the injection map adjustment by reading the signal of the stock O2 sensor (lambda) while riding the bike.
