Rockford Fosgate Replacement Power and Speaker Harnesses for PMX-HD9813

Rockford Fosgate Replacement Power and Speaker Harnesses for PMX-HD9813

1130-72997-01

$49.99 USD
$49.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock
  • Guaranteed Low Price
  • In Stock Items Ship 1-2 Business Days
  • Military and First Responder Discount
  • Get 3% Cash Back Rewards Program

Replacement Power and Speaker Harnesses for PMX-HD98131130-72997-01

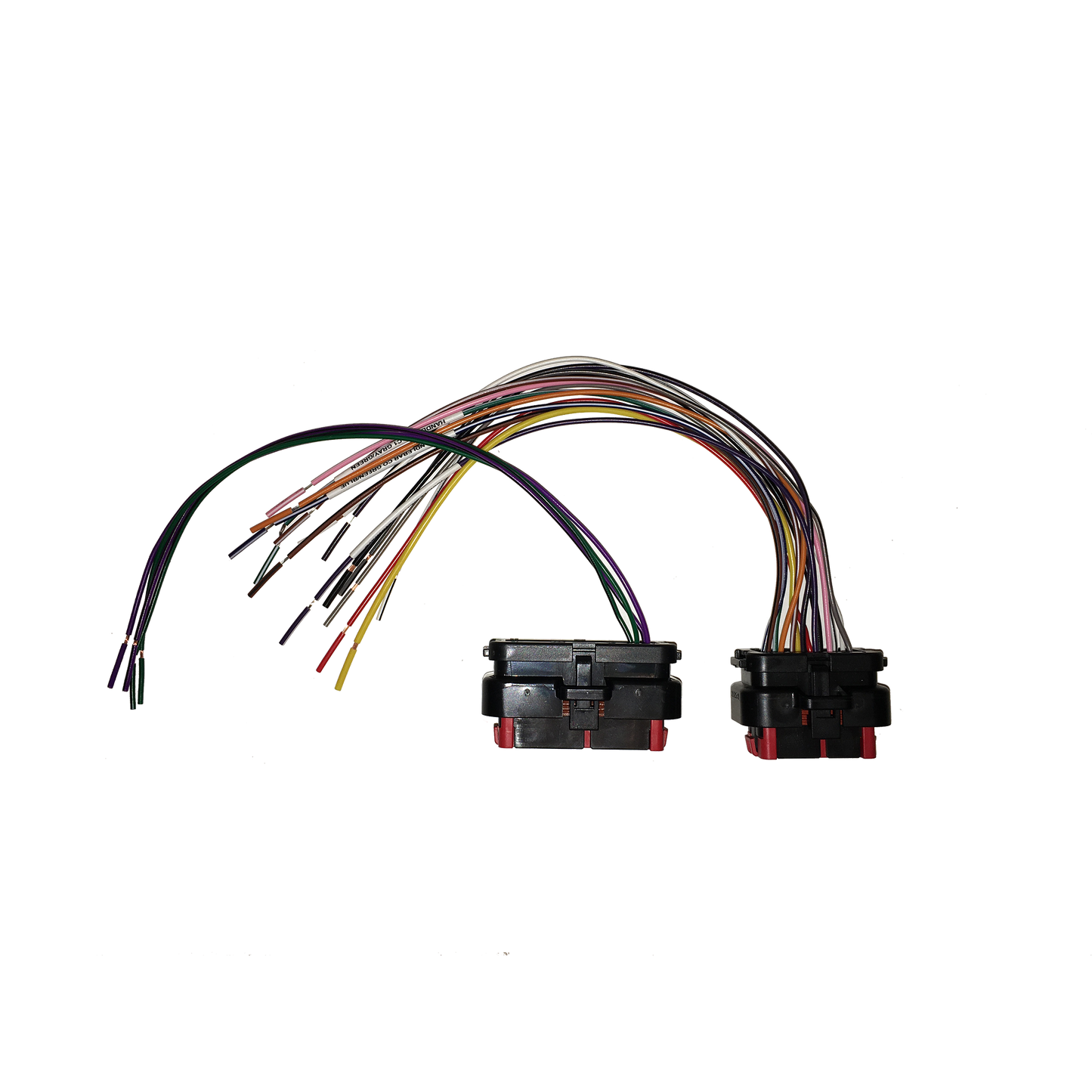

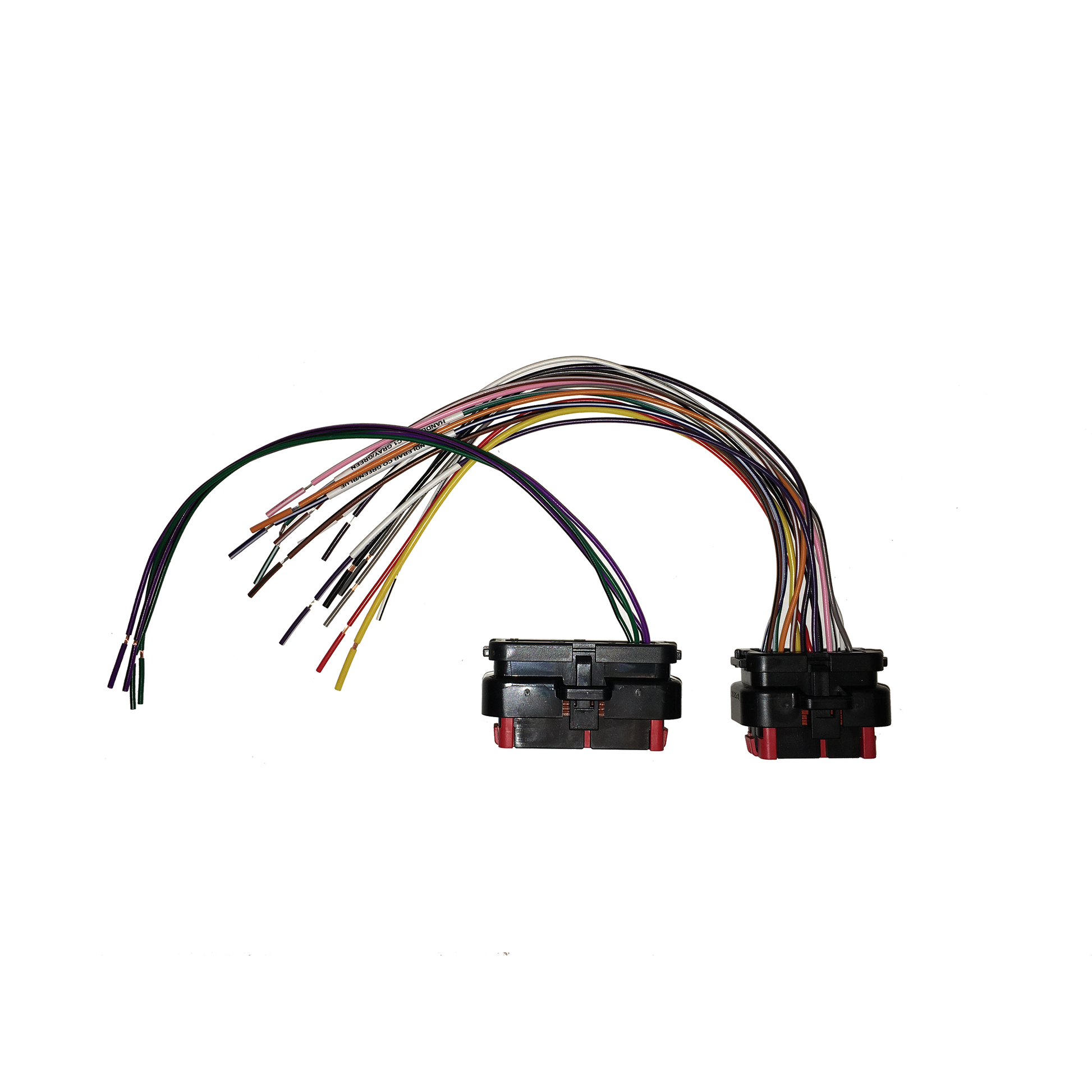

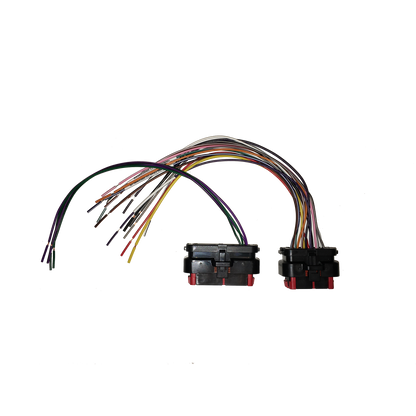

Replacement harnesses to operate the PMX-HD9813 source unit.  To be used for dealer displays or for installations where the factory Harley-Davidson® harnesses have been cut off or damaged beyond repair.

The SMALL connector harness contains power, ground, ACC, illumination, and front speaker outputs. The LARGE connector harness contains rear speaker outputs.  Harnesses are sold as a pair. We are providing these replacement harnesses for instances such as:

- Dealers with product demo displays.
- Customers with aftermarket radios where the OEM plug(s) have been cut-off.
- Customers adding rear speakers to a motortcycle that did not have rear speakers.

See COMPATIBILITY chart to verify fitment before purchasing.

The PMX-HD9813 source unit utilizes the factory wiring and therefore wiring harnesses are not supplied.

POWER
B+ (12v) Yellow
Switched (+12v) Red
Ground (-) Black

FRONT SPEAKERS
LEFT (+) White
LEFT (-) White/Black
RIGHT (+) Grey
RIGHT (-) Grey/Black

REAR SPEAKERS
LEFT (+) Green
LEFT (-) Green/Black
RIGHT (+) Purple
RIGHT (-) Purple/Black

See COMPATIBILITY chart to verify fitment before purchasing.

FEATURES AT A GLANCE

  • Sold in pairs (2 each)
  • Replacement harnesses for PMX-HD9813
  • Harley-Davidson compatible connectors

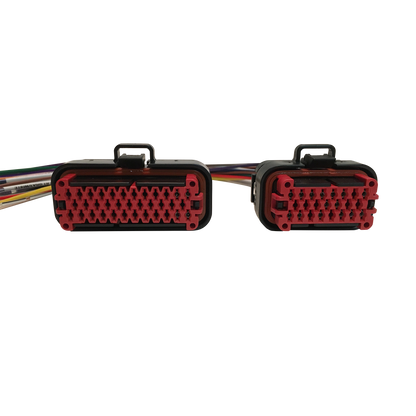

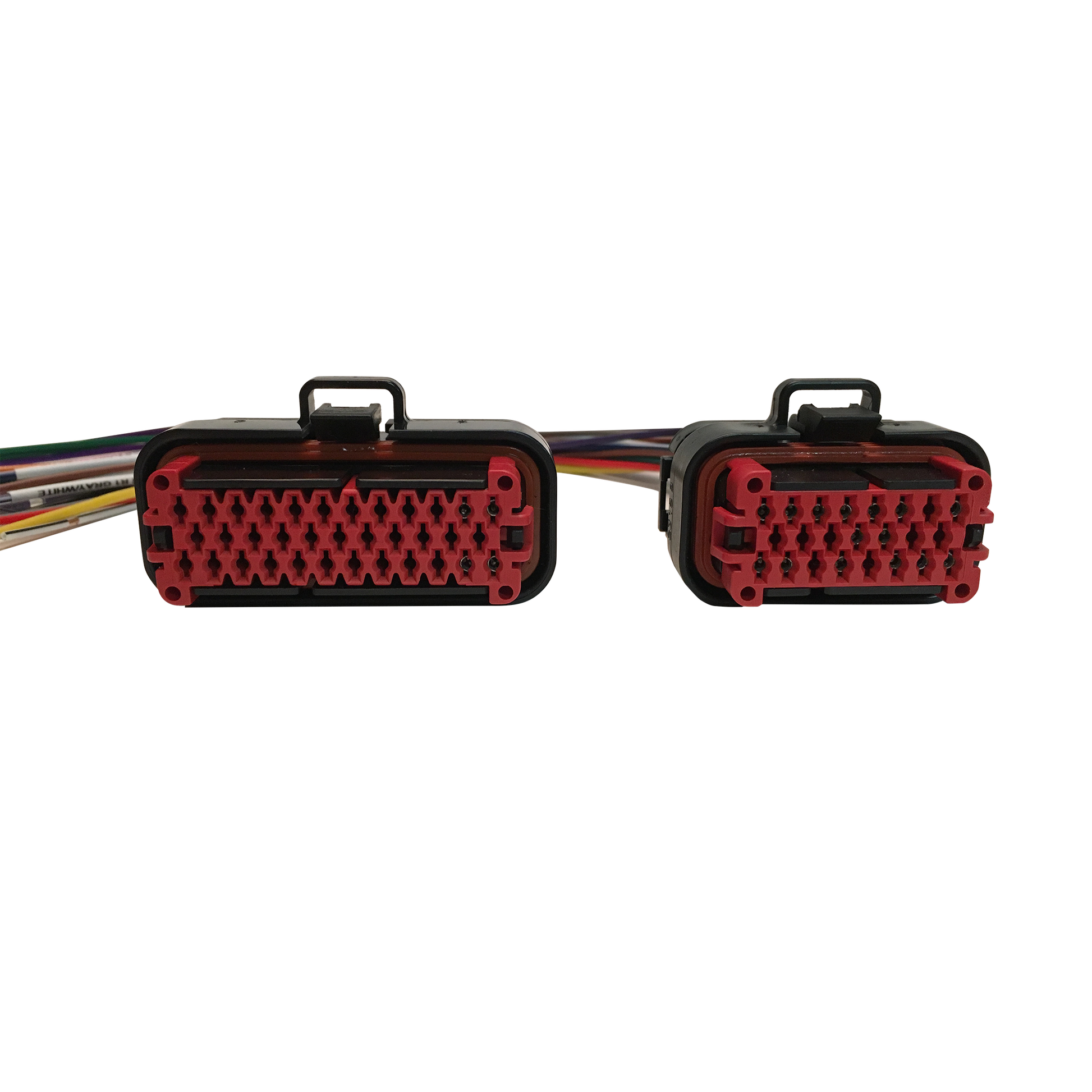

  • Supplied with 23-pin harness (power & front speakers)
  • Supplied with 35-pin harness (rear speakers)
  • Moisture-proof seals
