SUB Mount Rubber Type Stabilizer Complete Kit

• KTM 1290 Adventure (All) 2015-2020
• KTM 1190 Adventure (All) 2013-2017

SUB Mount / Complete Stabilizer Kit / rubber type/ using stock triple clamp

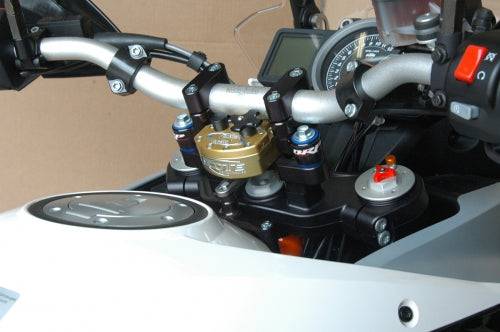

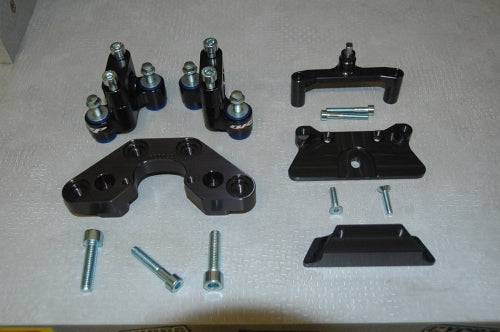

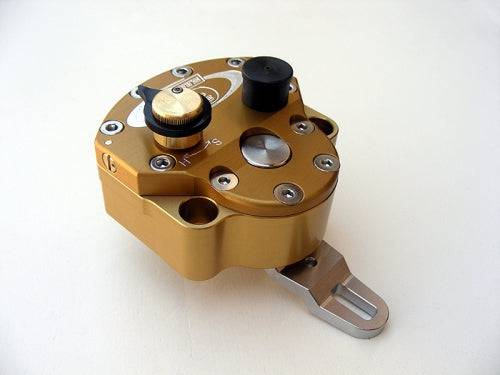

Shown here is the complete bolt on SUB mount kit for the 1190 and 1290 Adventure and R models. This is a substantial improvement to this model. This is a rubber SUB mount to help reduce vibration to the hands and it mounts to the stock triple clamp. Sub mount comes assembled with medium compound bushings and additional soft compound bushings are included. The kit includes everything you need to make the installation easy and quick. This kit raises the handlebars 38mm and moves them forward 13mm, a position we found to be very popular for this model. If for some reason you want lower bend bars, you can select your choice of optional bends, right here by viewing the pull down menu. You have the option of selecting a rebound or non-rebound style stabilizer above. Click on the "?" to get more info about this option. The text below this is generic text that applies to all our SUB mounts. (The large knob shown in this picture is also an upgrade option not included in the standard kit).

"SUB" mount stands for Stabilizer Under Bars, originally designed for raising the bars. These kits are designed for use with Oversize bars. "Bar reducers" are available as an option, to convert the kit to standard diameter bars, should that be desired. This concept allows more room for other equipment such as, Global Positioning Systems(GPS) or Enduro/Rally computers and yet still retain the quick access for adjusting the stabilizer. This is also good for the taller rider who wants his bars a little higher, as it raises the bar location approximately 11-25mm, depending on the model of bike. In some cases, you might consider a lower bend handlebar bend at the same time, unless you are trying to achieve a higher bar height along with your stabilizer installation. We can also help you with other handlebar choices to match your desired setup, as we have a full selection of handlebars to choose from on this website. The SUB mounts are only available on certain models based on the physical limitations of mounting in this area. Each SUB mount comes complete with all necessary parts, hardware and "Step by Step" pictured instructions. If you have any questions, feel free to call or email us. The Photo attached here may be a generic photo to show you the basic components in the kit, but may not be showing the exact kit for your specific bike.
