Speedwerx Lightweight TEAM BOSS / ADAPT Helixes // Progressive Cut

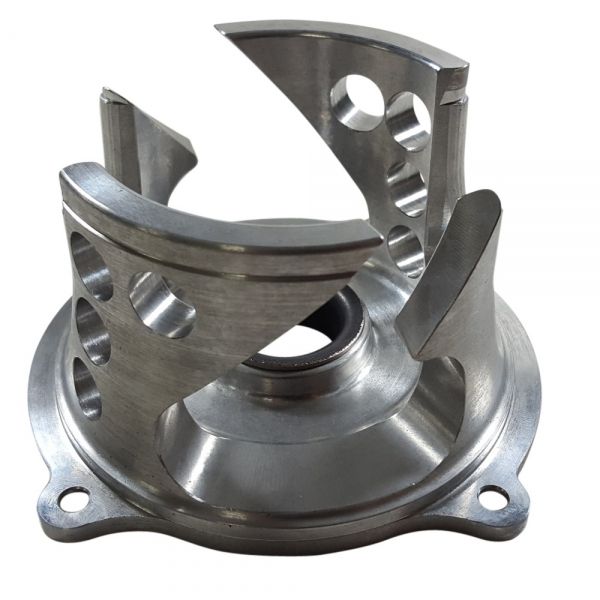

Our TEAM BOSS / ADAPT Helixes are machined in-house- we shave off excess material to save .10lbs over the stock helixes without compromising strength or durability. These helixes are available in both Electronic Reverse (2-Stroke) and Standard (4-Stroke) designs.

We offer three types of cuts on these helixes-

Straight Cut- these helixes maintain the same angle for the entire length of the ramp.

Compound Cut- these helixes are progressive on the first section of the ramp and have a straight angle on the end of the ramp. In each part number (ex. 59-43.36), the final number (.36) indicates the length of the first part of the ramp where it progresses from the first angle (59°) to the second angle (43°).

Progressive Cut- these helixes progressively change from the starting angle to the ending angle down the whole ramp.

The advantage to the compound radius is that it will typically back shift quicker for snow cross or tight twisty trail riding. The starting angle is always steeper at first for quicker acceleration, then progressively changes to the lesser angle so that the clutches don’t over shift and bog down the motor so you retain excellent top speed.

Custom angles are also available for $199.95 - please call us at 651.982.6020 (leadtime varies).

Some of the stocked and custom angles available:

• TBH-45P50-ER
• TBH-56P40-ER
• TBH-44P40
• TBH-45P40
• TBH-46P38
• TBH-46P44
• TBH-48P42
• TBH-48P44
• TBH-50P42
• TBH-52P48
• TBH-53P38
• TBH-54P40
• TBH-54P44
• TBH-54P46
• TBH-56P38
• TBH-56P50
• TBH-57P40
• TBH-59P38

Our TEAM BOSS / ADAPT Helixes are machined in-house- we shave off excess material to save .10lbs over the stock helixes without compromising strength or durability.
