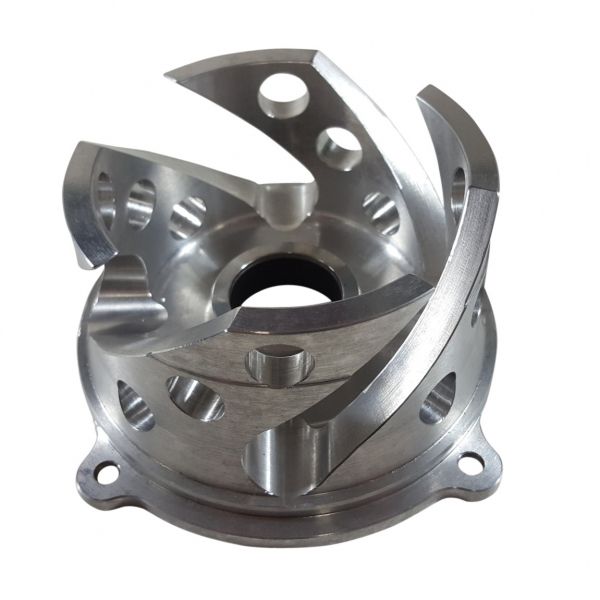

Speedwerx Lightweight TEAM TSS-04 Helixes

Our Lightweight Helixes for TEAM TSS-04 clutches are custom machined in-house- we shave off excess material to make them over 20% lighter than a stock type helix without compromising strength or durability.

Stock Polaris single ramp helix- 1.85lbs.
Standard Aftermarket dual ramp helix- 1.75lbs.
Speedwerx Lightweight dual ramp helix- 1.45lbs.

NOTE: 2021+ Polaris models require 2020-earlier rollers (460079 x2) to use any dual ramp helix. See related products below to purchase.

• 100% Made in the USA
• Used by top Snocross, Cross Country, Enduro, and Drag Racing Teams since 2017
• Replaceable Bushing
• Unlimited Angle Options

We offer three types of cuts on these helixes-

- Straight Cut - these helixes maintain the same angle for the entire length of the ramp.
xx / xx (First Ramp / Second Ramp)

- Compound Cut - these helixes are progressive on the first section of the ramp and have a straight angle on the end of the ramp. In each part number (ex. 59-43.36) the final number (.36) indicates the length of the first part of the ramp where it progresses from the first angle (59°) to the second angle (43°).
xx-xx-.xx / xx-xx-.xx   (First Ramp Start Angle-Finish Angle-Transition/Shift Point / Second Ramp Start Angle-Finish Angle-Transition/Shift Point )

- Progressive Cut - these helixes progressively change from the starting angle to the ending angle down the whole ramp.
 xxPxx / xx-Pxx (First Ramp Angle Progressing to Finish Angle / Second Ramp Angle Progressing to Finish Angle)

The advantage to the compound radius is that it will typically back shift quicker for snocross or tight twisty trail riding. The starting angle is always steeper at first for quicker acceleration, then progressively changes to the lesser angle so that the clutches don’t over shift and bog down the motor so you retain excellent top speed.

Custom angles are also available for $199.95 - leadtime varies, please call us at 651-982-6020.

Our Lightweight Helixes for TEAM TSS-04 clutches are custom machined in-house- we shave off excess material to make them over 20% lighter than a stock type helix without compromising strength or durability.

Some of the stocked and custom angles available:

• 420-36-38
• 420-37-39
• 420-38-40
• 420-40-42
• 420-40-44-42P-44-42P-ER
• 420-40-44P-44-46-36ER
• 420-404636-40P44
• 420-404636ER-404836ER
• 420-404636ER-424736ER
• 420-404836ER-405036ER
• 420-40P46ER-42P48ER
• 420-41-43
• 420-42-44
• 420-42ER-44ER
• 420-44-46
• 420-44P38-46P40
• 420-45-47
• 420-46-48
• 420-4636ER-424736ER
• 420-46P38-46P40
• 420-49-51
• 420-50-52
• 420-524236ER-544236ER
• 420-52P40ER-52P42ER
• 420-544236ER-544436ER
• 420-544436ER-544636ER
• 420-564236ER-664436ER
• 420-584436ER-584636ER
• 420-604415-604425
• 420-604436ER-624436ER
• 420-624536-644536
• 420-644336-644140
• 420-644841-684836
• 420-664136-664333
• 420-664136-664336
• 420-664236-664433
• 420-684136-684333
• 420-684240-704236
• 420-684836-644841
• 420-684846-704432
• 420-70-46.46-68-44-.46
• 420-704215T-704315T
• 420-704220T-724220T
• 420-704226T-704326T
• 420-704236-684240
• 420-704246-704446
• 420-704415T-764415T
• 420-704423T-744420T
• 420-704425T-724422T
• 420-704427T-734427T
• 420-7044324442-7244324442
• 420-704646-704846
• 420-705046-725246
• 420-714326T-734326T
• 420-724126T-724226T
• 420-72416.5S-72426.5S
• 420-724215T-724415T
• 420-724215T-744215T
• 420-724220T-724320T
• 420-724225T-744325T
• 420-724232-704236
• 420-724240-744236
• 420-724266-744266
• 420-724315T-744315T
• 420-724326T-747326T
• 420-724332-724530
• 420-724415T-744415T
• 420-724420T-744422T
• 420-7244254442-7444254442
• 420-724430-724232
• 420-72446.5S-73436.5S
• 420-724461-724466
• 420-724518T-724418T
• 420-724530T42P-744530T42P
• 420-724535-744332
• 420-724836
• 420-724841-704641
• 420-734318T-754318T
• 420-734425T-744426T
• 420-7420T744426-7425T744422
• 420-744220T-764220T
• 420-744225T-744230T
• 420-744230-744430
• 420-744230T-744430T
• 420-744236-764236
• 420-744240-764232
• 420-744246-744446
• 420-74427S-74437S
• 420-744320T-744420T
• 420-744330-744530
• 420-744330T-764430T
• 420-744332-724336
• 420-744332-744336
• 420-744418t-744318t
• 420-744423T-754427T
• 420-744425T-744430T
• 420-744425T-744441
• 420-744425T-744625T
• 420-744425T-764325T
• 420-744425T42P-764425T42P
• 420-744427T-754425T
• 420-744430T-764330T
• 420-744446-744451
• 420-744461-744466
• 420-744625T-744630T
• 420-744636-764832
• 420-74683044P42-76703044P42
• 420-754615T-784815T
• 420-764230-764430
• 420-764230T-764425T
• 420-764241-784241
• 420-764318T-784218T
• 420-764320T-784320T
• 420-764320T-784420T
• 420-764332-784232
• 420-764425T-764441
• 420-764441-764446
• 420-7648404844F-8048354844F
• 420-764846-785046
• 420-765446-785436
• 420-76683044-767025704421
• 420-76722545-7425T744426
• 420-767225724420-744525T
• 420-784251-784451
• 420-784615T-784815T
• 420-784620T-784820T
• 420-784625T-784825T
• 420-785010-785015
• 420-785015T-785020T
• 420-785025-785225
• 420-785025T-785225T
• 420-785026-805026
• 420-785036-805036
• 420-785046-785246
• 420-805005T-805010T
• 420-805046-805246
• 420-824171-824261
• 420-825005T-825010T
• 420-825026-825036
