• CNC machined from 6061-T6 billet aluminum and offer more than twice the durability of OEM rearset brackets.
• 3-piece Pedals giving you an even stronger assembly and continuing our tradition of easy part replacement.
• Our trick knurled footpegs give supreme feedback and the best traction available today.
• Woodcraft rearset kits offer eccentric foot and toe pegs for adjustability (where applicable).
• Virtually any part in our rearset kit can be purchased separately from our kits under the Spare Parts tab

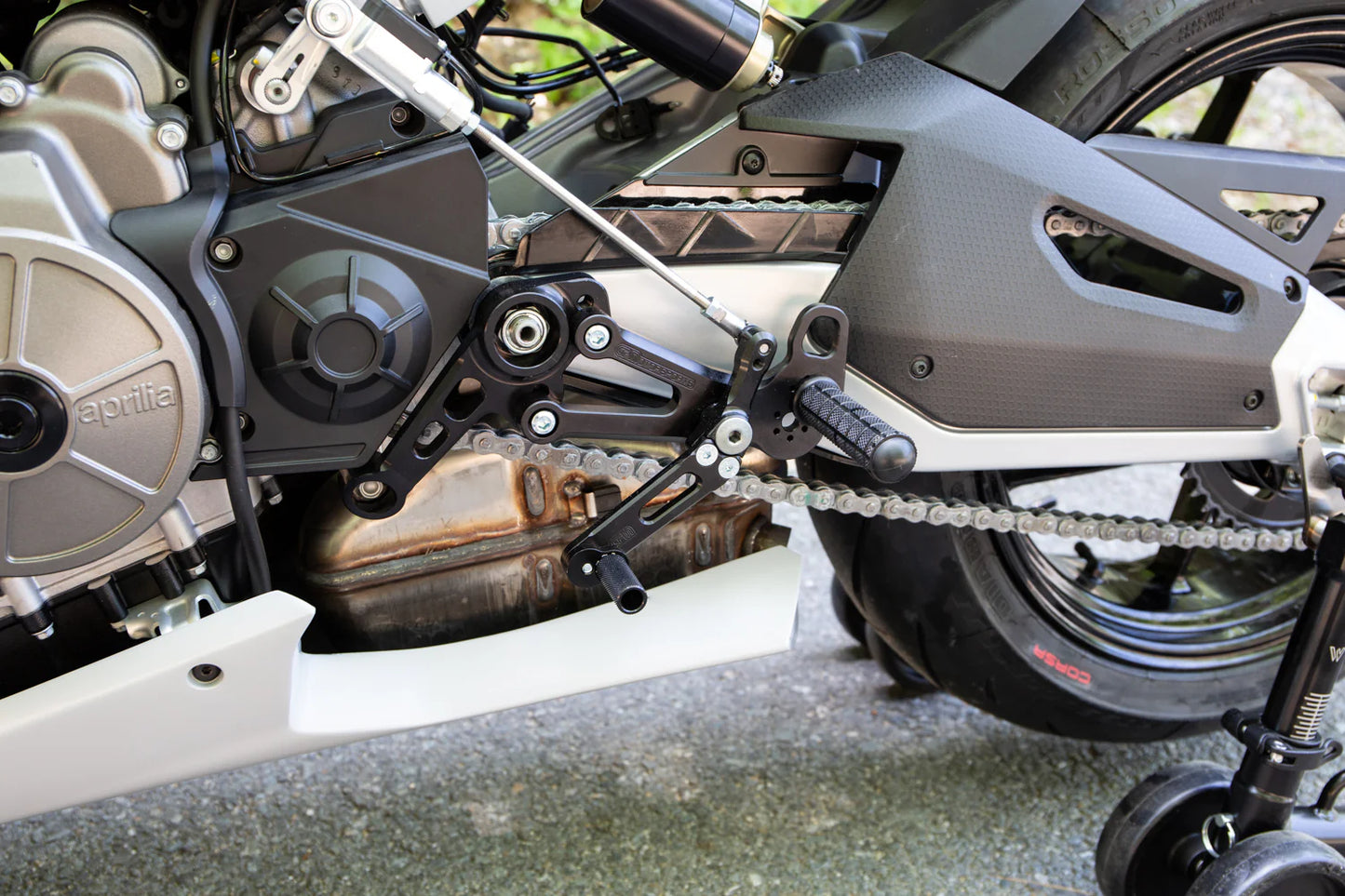

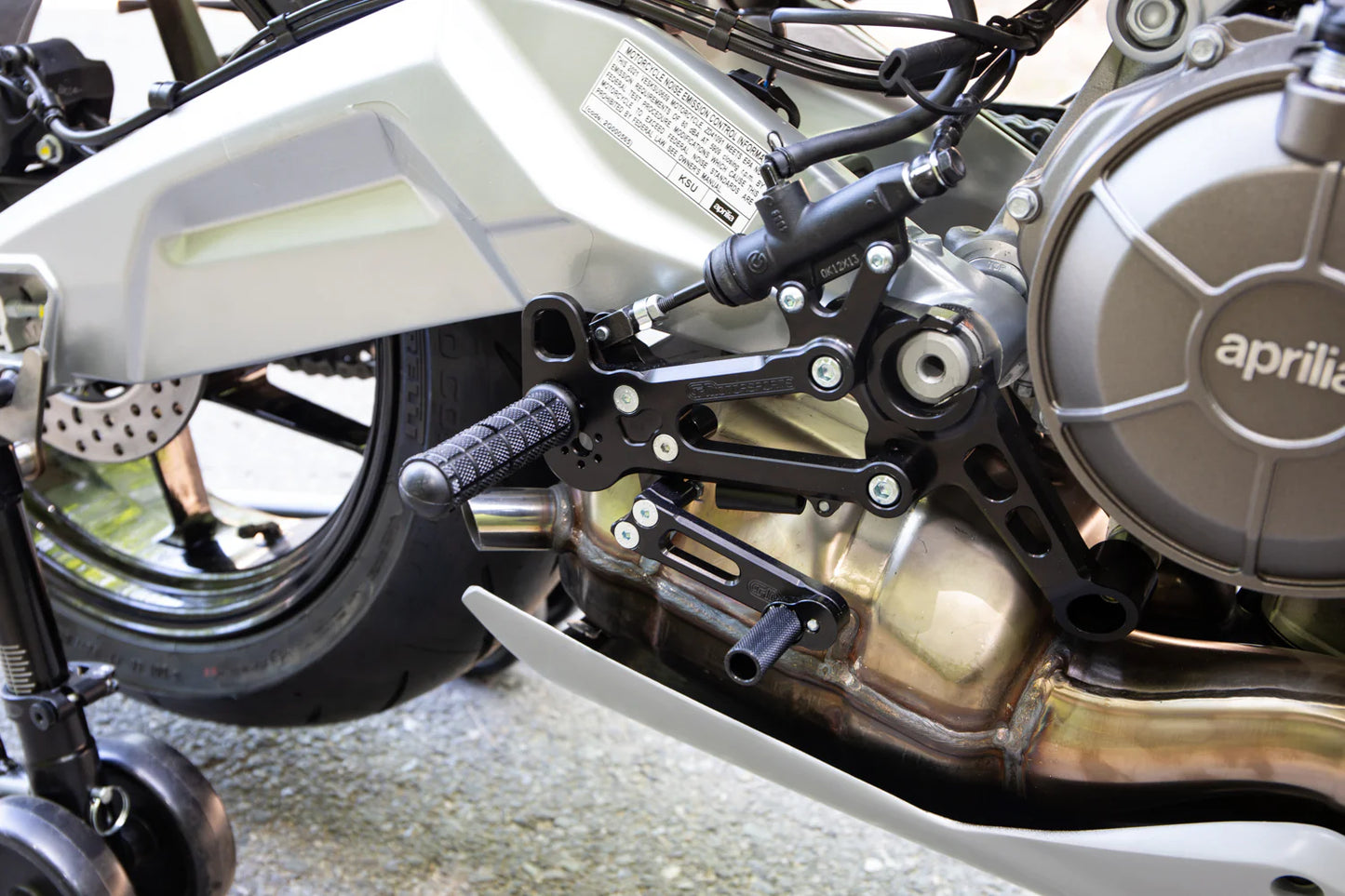

Kit Specific Details - the Woodcraft Rearset kit for the Aprilia has a special design that eliminates the need to ever remove the swingarm pivot to service this kit.  They have been proven winners in Moto America competition and look fantastic on the bike.

Shift Pattern: This complete rearset can be used in either STD or GP shift.

Peg Movement:  This kit has eccentric pegs that have 12 positions of adjustment ranging from 1/4" lower than stock to over an inch higher than stock.

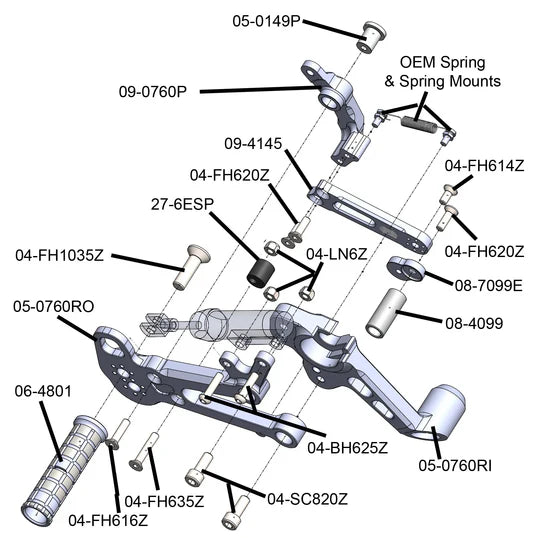

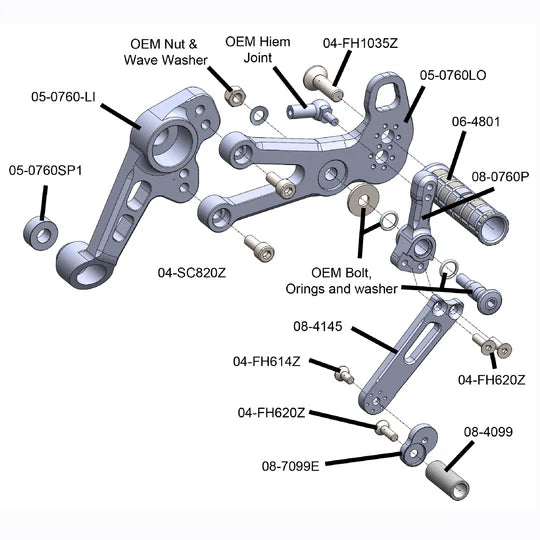

OEM Parts: Woodcraft rearsets assume you are replacing the OEM rearsets.  This kit utilizes some OEM components - see exploded drawings for details.

Brake Light Switch:  The correct brake light switch is 03-0205.

NOTE: The Aprilia quick shift sensor is directional, so it is not possible to simply flip the arm. Your Authorized Aprilia dealer will need to install software to allow these rearsets to be used in GP shift configuration.

NOTE: This rearset utilizes the swingarm pivot for their main attachment point.  In order to install you will have to remove the swingarm pivot pin. We suggest a motorcycle lift and pallet jack to install these rearsets. An overhead hoist would also be helpful.

Fitment.

• Aprilia RS660 2021-2024
